Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: FEELWORLD
  • Model Number: HTU3.0
  • Product name: hdmi capture to usb
  • Host Interface: USB3.0, 300-350MB/s throughput (Compatible with USB2.0, 40MB/s
  • Input Interface: 1 HDMI interface
  • HDMI Input Formats: HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV
  • Video Sampling Rate: HDMI: 165MHz
  • Audio and Video Capture: UVC (USB video class) and UAC (USB audio class)
  • Power Consumption: ≤ 2W
  • Working Current: 0.4A
  • Unit Size: 97.8Lx56Hx16.35D (mm)
  • Unit Weight: 120g

Packaging & Delivery

Packaging Details: 1pcs/color box, 20pcs/ carton
Delivery Detail: Shipped in 3 days after payment

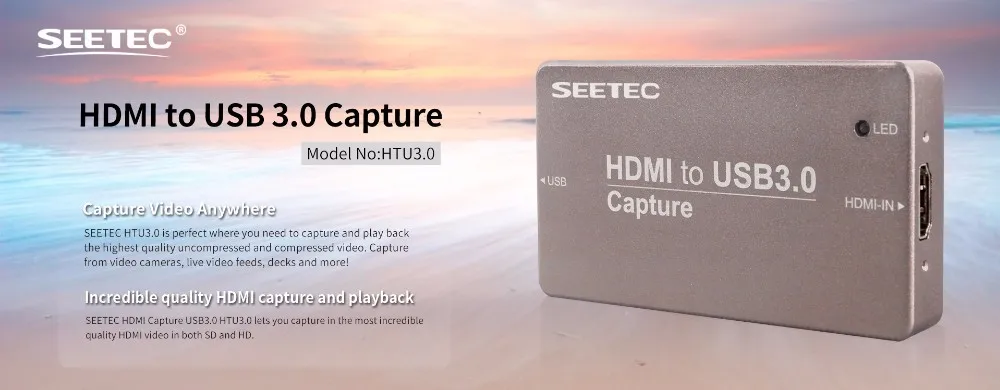

Metal Case Plug& Play no need drivers hdmi capture to usb for Wowza Cloud



The HDMI to USB3 Capture is the simplest and most powerful solution to get your HDMI video and audio into your computer. No drivers to install and works with most software on PC and Mac allowing live video streaming, webcasting or video conferencing to Skype, Facebook Live, Youtube Live, Livestream, UStream, Dacast, Wowza Cloud and many more.

The HDMI to USB3 Capture can capture various HD video sources with resolutions up to 1920x1200p @ 60fps. The HTU3.0 adopts the USB 3.0 interface, which can realize high-speed transmission.

The HDMI to USB3 Capture is the easies and most affordable HDMI capture device on the market. It is a trued plug and play device requiring no drivers for its use.

Extremely small, you can carry not anywhere giving you professional creative video capture on the go.

Get power from the PC directly and has no need of extra power adapter, which enables it to be carried easily.


Metal Case Plug& Play no need drivers hdmi capture to usb for Wowza Cloud



 Model  HTU3.0
 Host Interface USB3.0, *300-350MB/s throughput (USB2.0, *40MB/s throughput)
 Input Interface 1 HDMI interface


HDMI Input Formats


It meets the HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV)


Input Formats


Resolutions: 640x480/720x480/720x576/
Frame Rate: 25/29.97/30/50/59.94/60 fps


Output Formats


Resolutions: 640x480/720x480/720x576/
Frame Rate: 25/29.97/30/50/59.94/60 fps




Video Sampling Rate


HDMI: 165MHz




Audio and Video Capture


It meets the standards of UVC (USB video class) and UAC (USB audio class)


Output Color Space


The Support of OS


(x86 and x64 versions):
Windows 7
Windows 8
Windows 10
Windows Server 2008 R2
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above)




Software Compatibility


Adobe Flash Media Live Encoder (Windows, OS X)
Real Producer Plus (Windows)
QuickTime Broadcaster (OS X)
QuickTime Player (OS X)
Windows Media Encoder (Windows)
Daum Potplayer (Windows, OS X)
XSplit Broadcaster (Windows, OS X)
VLC (Windows, OS X, Linux)
Wirecast (Windows, OS X) etc.
OBS etc.


 Power Consumption ≤2.5W
 Working Temperature -10℃ ~ 50℃
 Storage Temperature -20℃ ~ 60℃
 Unit Size 97.8L×56H×16.35D (mm)
 Unit Weight 120g


Product Features

Product Features:
1. It can capture one single channel HD HDMI video signals.
2. The input and output video signal can reach 1080p/60 Hz.
3. It is compatible with UVC video capture and YUV 422 video output.
4. The UAC is compatible with HDMI audio capture and 48 KHz PCM audio output.
5. It doesn’t need to install a driver, and it is truly PnP.
6. It is compatible with Windows, Linux, OS X operating systems.

Advanced Features:
1. USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0 40MB/s.
2. The process of video and audio is done by the dongle and will not occupy the CPU.
3. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
4. It can automatically detect the input audio formats and swift it to 48KHz PCM audio.
5. It supports the image adjustment features, like brightness, contrast, hue and saturation.
6. Multiple dongles can be used on one PC
7. The firmware can be updated.

Product Overviews


Highest Quality Video
Most consumer video cameras compress HD video to fit longer recordings on to tape and discs. For video editing compressed media needs to be decoded to play back each frame of video and this puts additional strain on your computer's CPU and limits real time editing effects. Capturing directly with HTU3.0 by passes camera compression by recording directly from the camera's image sensor, so a low cost consumer camera can be used to capture full HD resolution video in broadcast quality!


USB 3.0 Fastest Data Transfer Speeds
It's easy to add the amazing quality of Intensity to your laptop, desktop or computer workstation! You can connect to computers using USB 3.0 enjoy the fastest data transfer speeds. Now you can capture the highest uncompressed 1080HD video with portable devices that are powered from the computer connection! That's truly portable!



True HDMI Digital Connections
HTU3.0 features the highest quality HDMI connections that are the worldwide standard for consumer digital video equipment. HDMI connects full HD video quality and digital audio to TVs and more.

Professional Video Standards
HTU3.0 offer the flexibility of working with compressed and uncompressed video in standard definition PAL/NTSC up to full 1080HD video. You can capture live game play, archive family movies and create amazing videos in full broadcast quality video!


Record your Game Play
Connect Intensity to game consoles for amazing live action game play recording! Now you can capture live game play with full quality and full motion without dropped frames. Archive your gaming forever in digital file formats that are easy to edit, store and playback.

Attractive Portable Design
Sits perfectly on your desktop or on location
HTU3.0 machined from aluminum for portability and exceptional durability. Thin, portable and lightweight, they sit perfectly on your desk or go easily on location.
HTU3.0 is no need for an external power supply since it's powered by its USB connection, so you really can take it anywhere you work!


Live Production
HTU3.0 is a powerful choice for use with live production switchers. HTU3.0 is portable so it can travel around to live events and work in the most demanding situations! Generate real time titling and graphics for live production on workstations and then present them to the switcher for use all in real time. If you need to do streaming or capture into custom video formats, then HTU3.0 can simply connect to the live production switcher video output and then capture live!

Non Linear Editing
HTU3.0 works with the world's most popular editing software and provides high quality connections so you can handle all types of video formats.


Live Streaming Made Easy
HTU3.0 is fully compatible with popular video streaming software so you can broadcast your media live to millions of online viewers! Capture direct from cameras or live production switchers using HTU3.0 and then integrate the high quality captured video into your live streaming workflow. HTU3.0 models support common streaming software such as Flash Media Encoder, Wirecast, Livestream Procaster and Resolume Avenue 4. With HTU3.0 it's easy to create high quality live or on-demand broadcasts for the web of sporting events, webcasts, podcasts or concerts!
